40FT High Cube Pallet Wide Container
Categories: 40ft Shipping Containers, Standard Shipping Containers
Description

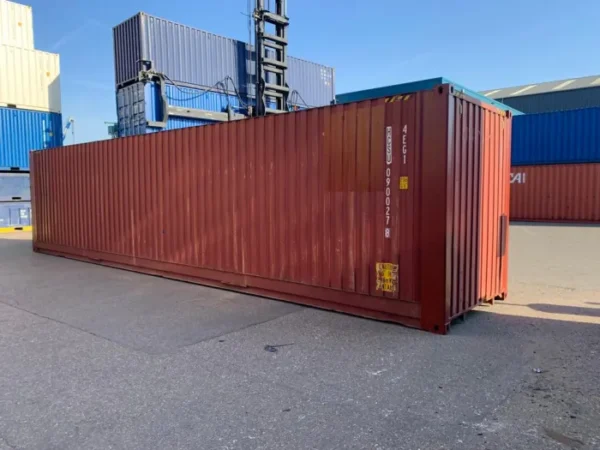

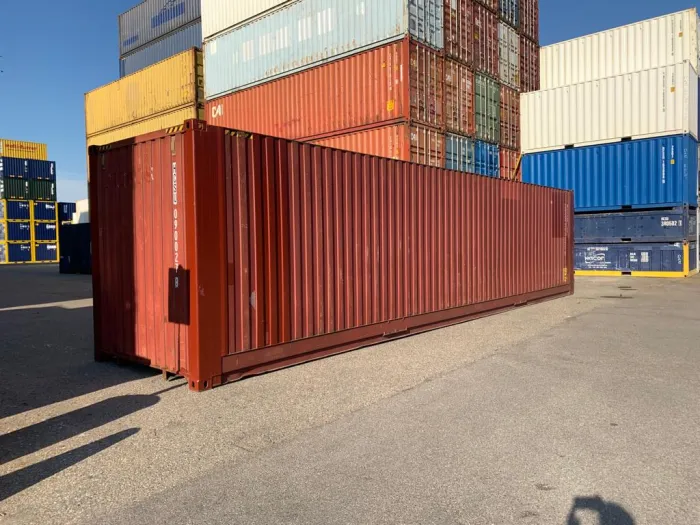

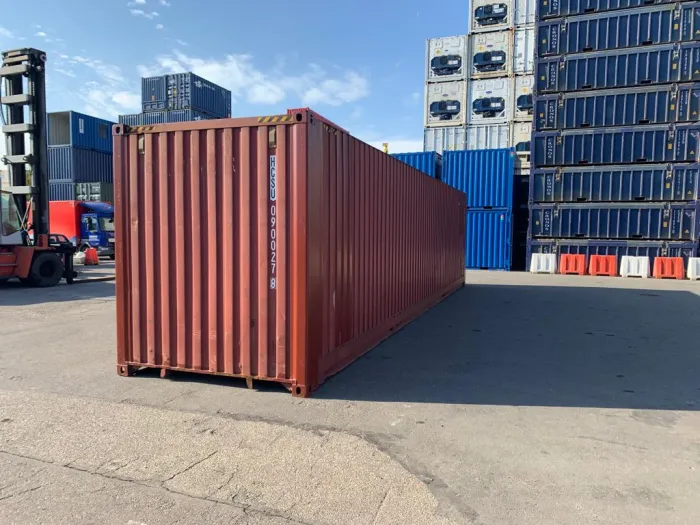

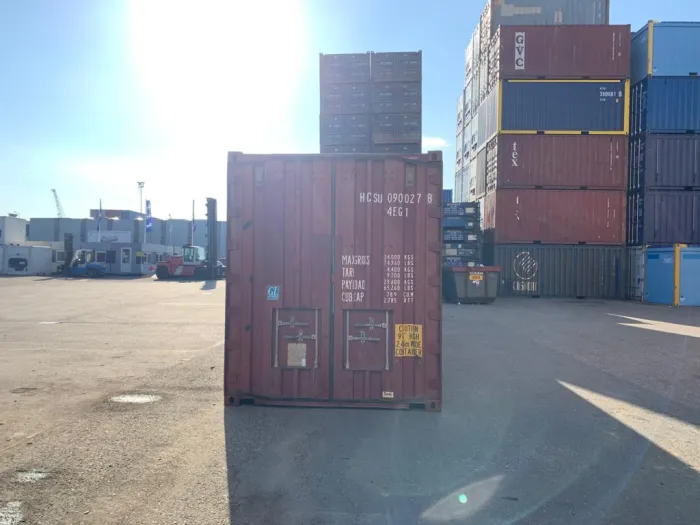

40FT High Cube Pallet Wide Container
Euro Pallet Optimization Meets High-Volume Efficiency
The 40FT High Cube Pallet Wide Container is purpose-built for Euro-palletized freight, delivering maximum space efficiency without sacrificing strength or compliance. With a wider internal clearance than standard ISO containers, this unit allows two Euro pallets (1200 mm x 800 mm) to be loaded side by side — eliminating wasted width and increasing payload density.
Engineered from corrosion-resistant CORTEN steel, reinforced with a durable marine-grade plywood floor, and certified for intermodal transport, this container is the preferred choice for European freight, transatlantic exports, and warehouse-based pallet storage.
Product Features
- Internal Width: 2.422 m – fits two Euro pallets side by side
- High Cube Format: Extra vertical clearance for stacking and light bulk cargo
- Construction: Fabricated from CORTEN steel with marine-grade 28mm plywood flooring
- Ventilation: Equipped with standard passive air vents
- Security Fittings: Lockbox + high-position locking gear for anti-tampering security
- Certification: CSC certified – export-ready, intermodal-compatible
- Stackability: Engineered for vertical stacking under ISO tolerances
- Color Options: RAL custom colors available upon order
Each container is built for cross-border transport, warehouse integration, and long-term storage—with Euro-pallet optimization baked into the design.
Specifications
| Specification | Detail |
|---|---|
| Container Type | 40FT High Cube Pallet Wide |
| Construction Material | CORTEN Corrosion-Resistant Steel |
| Flooring | 28mm Marine-Grade Plywood |
| Ventilation | Standard Passive Vents |
| Security Features | Lockbox + High-Position Locking Gear |
| Certification | CSC Certified – Export Ready |
| Stackable | Yes – ISO Tolerance Compliant |
| Color Options | RAL Standard / Custom on Request |
Dimensions & Weight
| Metric | Measurement |
|---|---|
| Internal Dimensions | 12.100 m (L) × 2.422 m (W) × 2.695 m (H) |
| External Dimensions | 12.192 m (L) × 2.462 m (W) × 2.896 m (H) |
| Door Opening | 2.416 m (W) × 2.585 m (H) |
| Tare Weight | 4,400 kg |
| Max Payload | 29,600 kg |
| Gross Weight Rating | 34,000 kg |
Engineering Highlights
- Precision pallet spacing: Internal width allows for two Euro pallets per row, side by side
- Volume advantage: High Cube format increases usable cubic meters, reducing freight cost per pallet
- Heavy-duty floor: Marine plywood absorbs forklift shock and resists warping under load
- Rapid deployment: Forklift pockets and ISO corner castings make this unit ready for crane or trailer use
- Multi-modal usage: Certified and reinforced for sea, rail, and road shipping lanes
- Stack-safe construction: Conforms to ISO load-bearing tolerances for secure vertical stacking
Ideal Use Cases
European Freight & Distribution
Perfect for logistics operators who depend on Euro-pallet workflows and need efficient load ratios on transcontinental and domestic routes.
Export & Bulk Shipping
Provides maximum internal clearance for high-volume or lightweight cargo without wasted space or over-packing issues.
Intermodal Shipping Corridors
CSC certification and ISO structure ensure compatibility with all major shipping and port handling systems.
Warehousing & Storage
Used as on-site modular storage for high-turnover palletized inventory. Color branding available for supply chain visibility.
Compliance & Customization Options
- CSC Certification: Included with each unit – ready for international shipping use
- RAL Colors: Choose from standard container colors or request a custom finish
- Exterior Branding: Logos or stenciling available for high-volume orders
- Load Testing: Units are checked for dimensional compliance and structural readiness before dispatch
Request a quote or reserve this unit today. Inspection-ready. Euro-pallet compatible. Shipping-grade certified.
