20FT One Trip Open Side Shipping Container
Categories: 20ft Shipping Containers, New Shipping Containers
Description

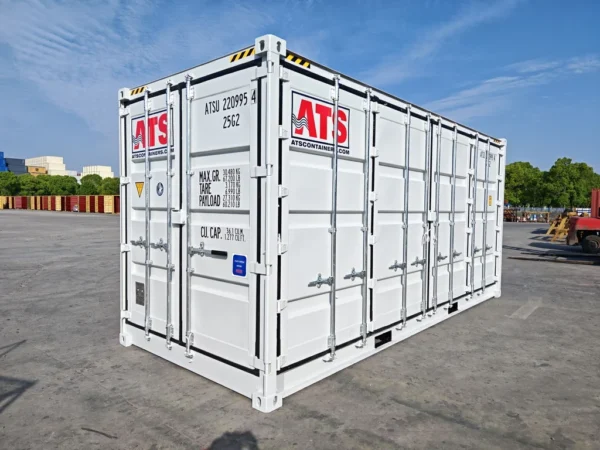

20FT One Trip Open Side Shipping Container
Full-Length Side Access. Built for Bigger Demands.
The 20FT One Trip Open Side Shipping Container delivers a powerful combination of structural integrity and functional accessibility. This container has completed a single cargo trip and is offered in like-new condition, featuring full-length side doors that span nearly the entire container length in addition to standard rear cargo doors.
Designed for oversized, irregular, or side-access loading scenarios, this unit is ideal for construction sites, modular builds, industrial storage, and custom conversions. Built from CORTEN anti-corrosive steel and lined with marine-grade plywood flooring, this container is engineered for long-term durability across rugged environments.
Key Construction Features
- Condition: One Trip (New)
- Steel Type: CORTEN anti-corrosive construction
- Flooring: 19-ply Keruing-Apitong marine-grade plywood (1.1″ thick)
- Doors:

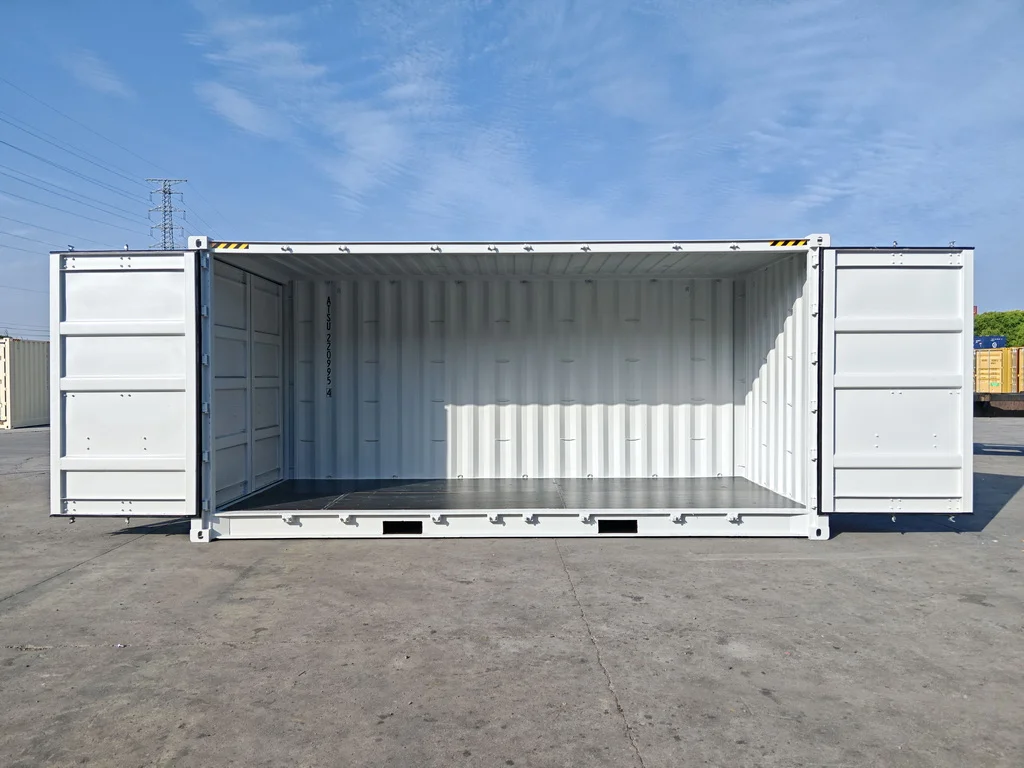

- Full-length multi-panel side doors (19’2″ opening)

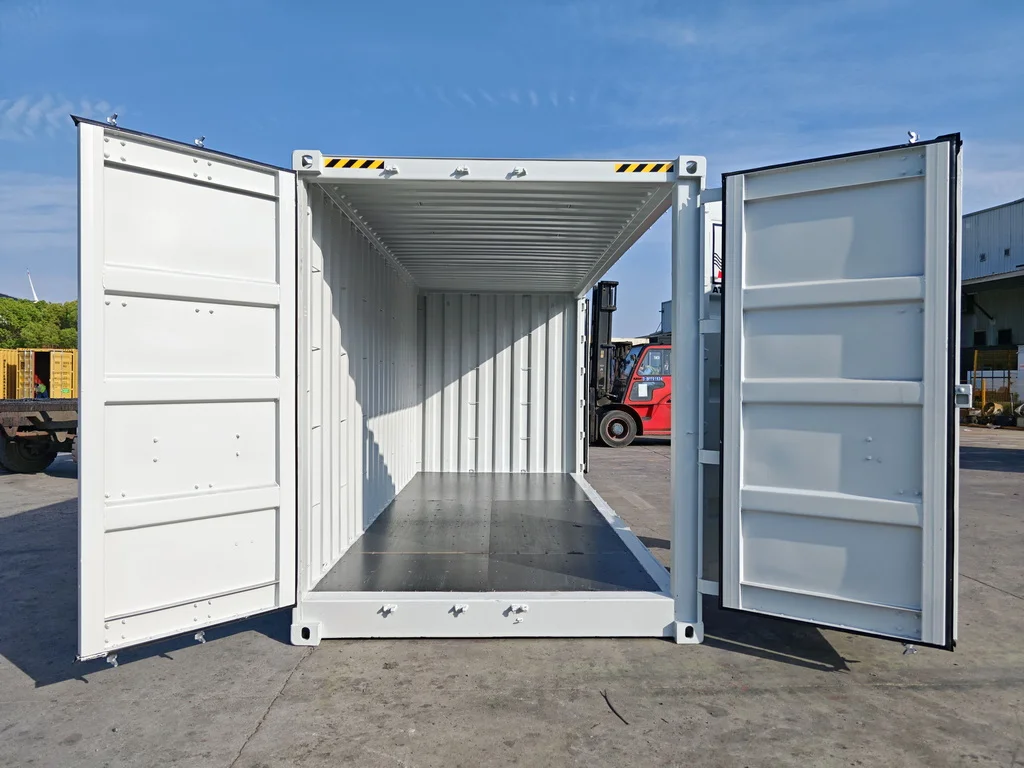

- Standard rear cargo doors (7’3” wide × 7’2” high)
- Security: Integrated lockbox for padlock protection
- Ventilation: Four passive weatherproof vents
- Handling:
- Forklift pockets at base
- Heavy-duty locking bars with 36” leverage handles
- Certification: ISO certified, suitable for export or modular conversion
Dimensions & Weight
| Specification | Measurement |
|---|---|
| Exterior Dimensions (L × W × H) | 20’ × 8’ × 8’6” |
| Interior Dimensions (L × W × H) | 19’4″ × 7’6” × 7’6” |
| Rear Door Opening (W × H) | 7’3” × 7’2” |
| Side Door Opening (L × H) | 19’2″ × 7’2” |
| Tare Weight | 7,010 lbs |
| Max Payload Capacity | 60,190 lbs |
| Gross Weight | 67,200 lbs |
Structural & Operational Notes
- Full-length side doors feature hinged panels for flexible opening — partial or full access as needed
- CORTEN steel shell resists corrosion in coastal, industrial, and wet site conditions
- Marine-grade plywood flooring supports high-impact loads including forklifts, drums, pallets, or equipment
- Forklift pockets ensure safe and balanced container handling during installation or relocation
- All doors meet ISO standards with reinforced locking mechanisms and tight weather seals
- Each unit is pre-inspected for frame integrity, hinge operation, and weatherproofing before release
Ideal Applications
Construction & Job Site Storage
Enable faster, targeted material access using side-load entry — ideal for staging, tools, and rapid loading/unloading.
Pop-Up Retail & Architecture
Convert the open side into a wide-access entrance or display wall for mobile showrooms, vendor booths, or pop-up stores.
Oversized Freight & Industrial Storage
Simplify the loading of long or uniquely shaped goods — from machinery to piping and custom fabrications.
Modular Conversion Projects
Wide openings support HVAC installation, shelving systems, wall retrofits, or multi-room partition builds in mobile office units.
Inspection & Delivery Condition
Every container undergoes detailed inspection to verify:
- Door alignment and sealing
- Side hinge latching and segment integrity
- Plywood floor structure and anchoring
- Frame geometry and weld integrity
- Vent and panel weatherproofing
Units are delivered in like-new condition with technical inspection reports and dimensional drawings available upon request.
