20FT New Tri-Door Shipping Container
Categories: 20ft Shipping Containers, New Shipping Containers
Description

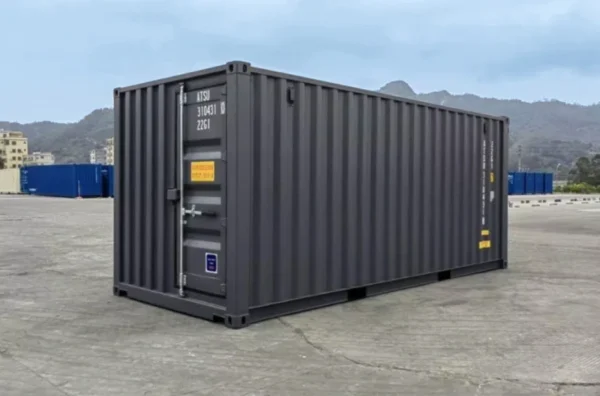

20FT New Tri-Door Shipping Container – One-Trip Condition
Multi-Access Functionality. Built to Last. Ready to Perform.
The 20FT New Tri-Door Shipping Container delivers engineered versatility with enhanced access features built directly into its frame. Designed for clients who demand rapid staging, efficient loading, and flexible entry points, this one-trip unit includes three secure cargo access points: standard rear double doors, a front-end single cargo door, and a complete locking system with welded steel lockboxes.
Ideal for projects that require internal zoning, quick-turn inventory flow, or conversion potential, this container’s triple-door configuration supports high-utility deployment across logistics, construction, modification, and storage sectors.
Core Specifications
- Container Type: 20FT Tri-Door – New (One Trip)
- Steel Construction: Heavy-duty CORTEN anti-corrosive
- Flooring: 28mm thick marine-grade plywood (19-ply)
- Ventilation: 8 weatherproof passive vents (4 per side)
- Forklift Pockets: Integrated at base for repositioning
- Corner Castings: ISO standard – stackable and crane-lift ready
- Security: Lockboxes welded to each cargo door for tamper resistance
- Roof Access: Welded steel ladder affixed to front wall
This container ships in factory-new condition, with minimal surface wear from its single transit. All structural, locking, and sealing mechanisms are verified during inspection.
Door System Details
| Access Point | Features & Dimensions |
|---|---|

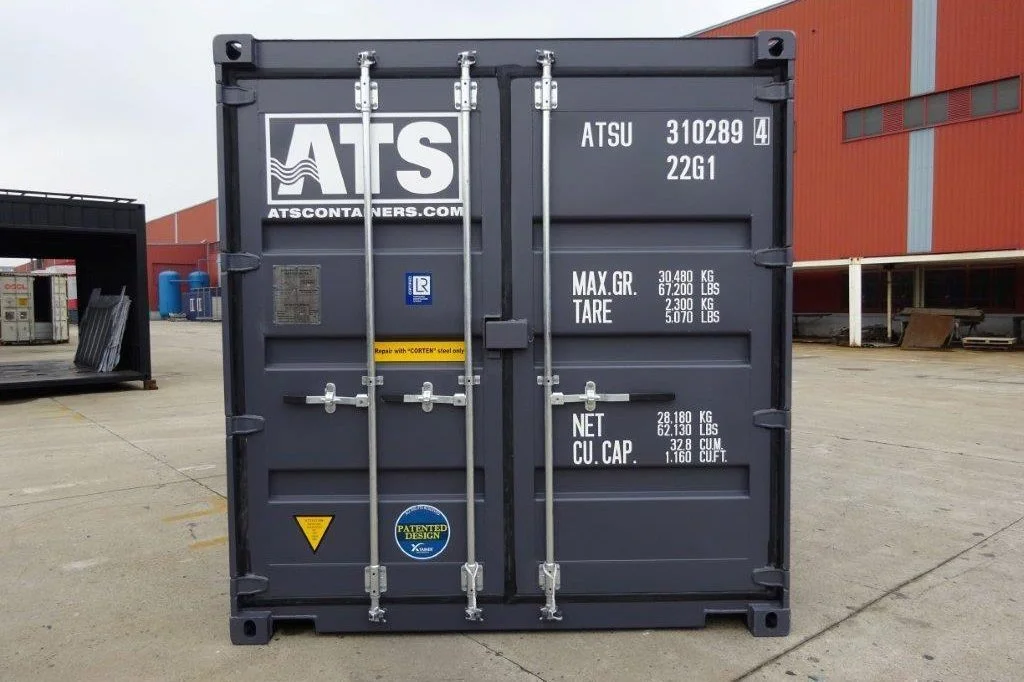

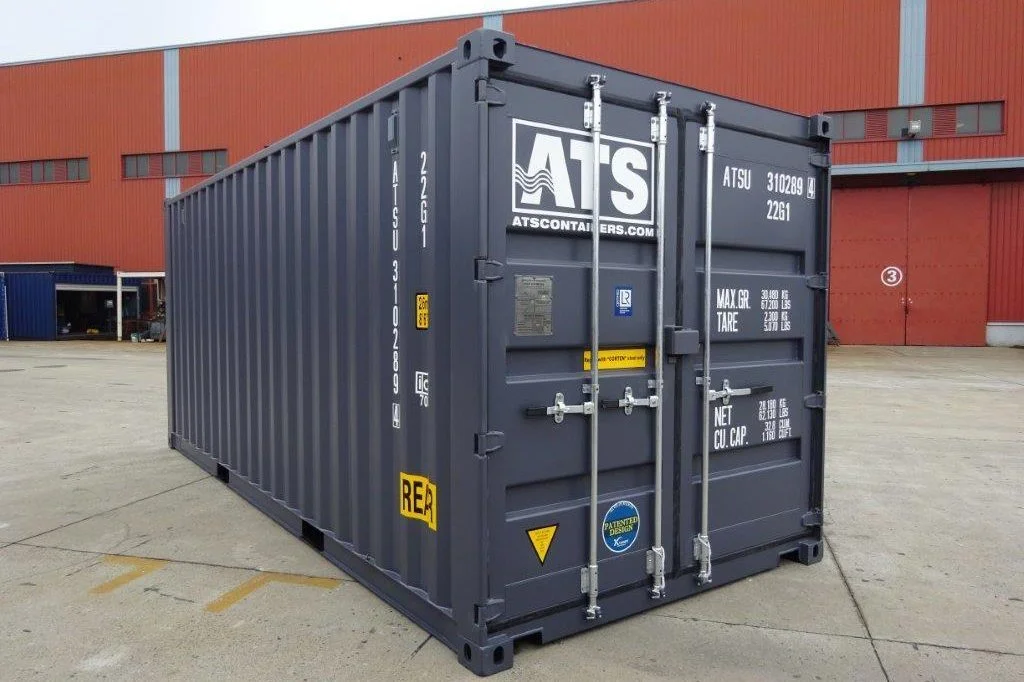

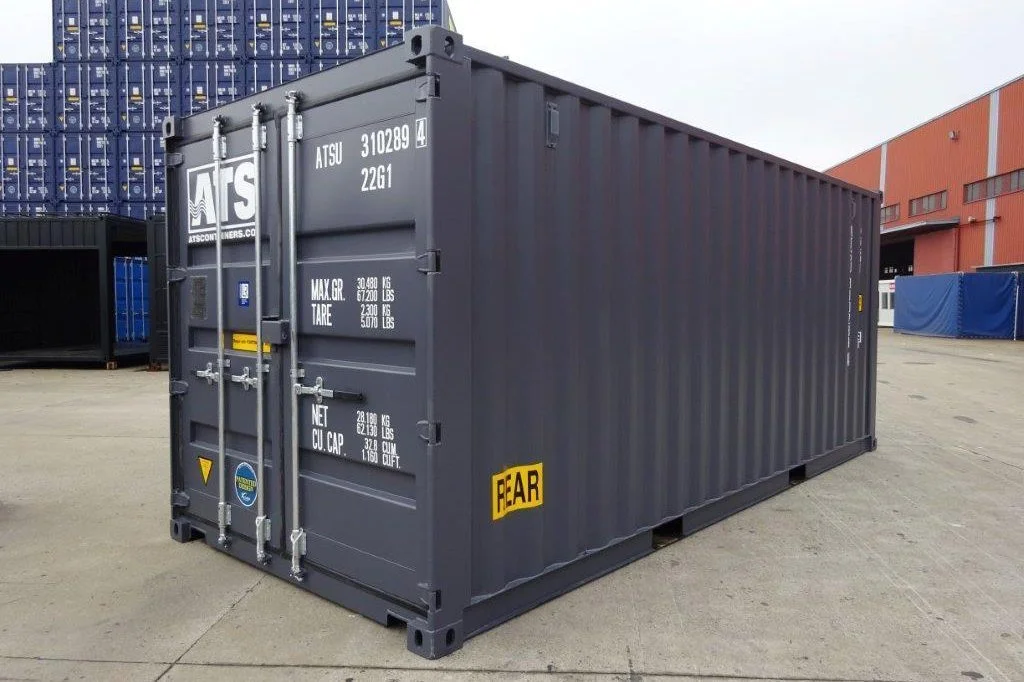

| Rear Doors | Standard double swing doors – 36” locking bar handles, full-width cargo opening (7’8” W x 7’5” H) |

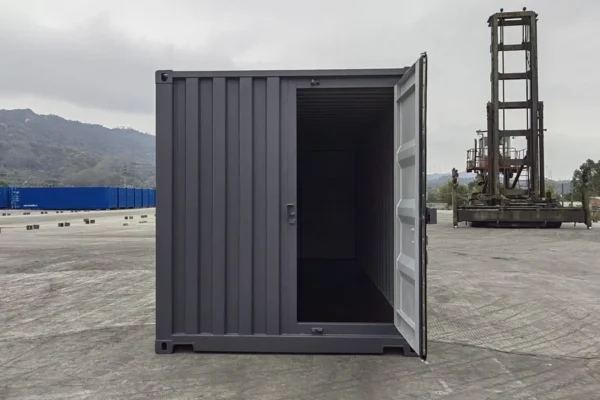

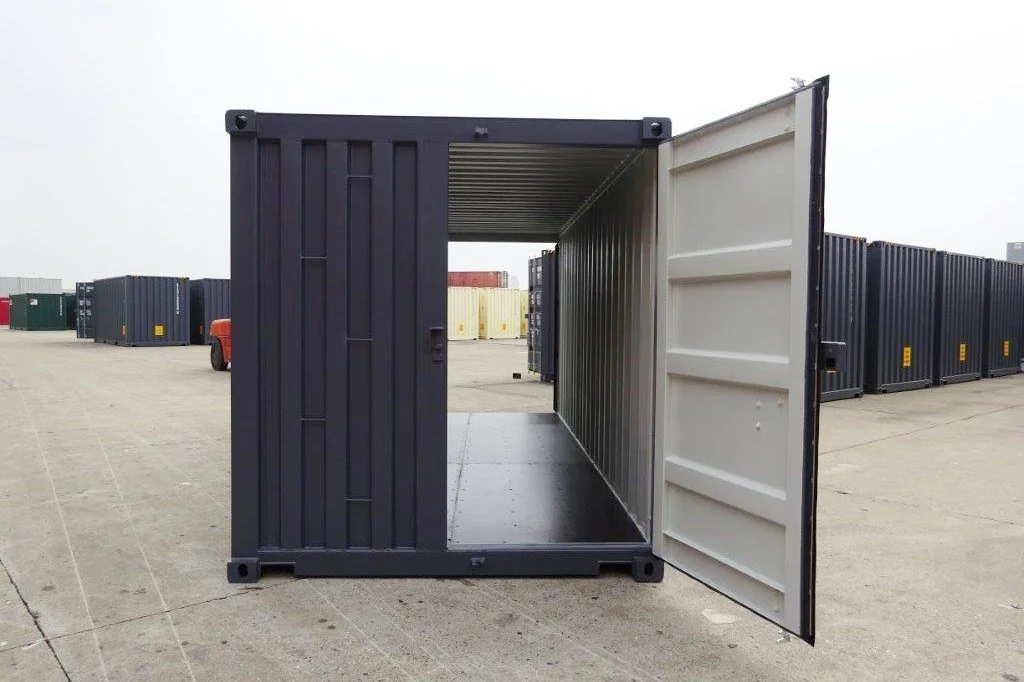

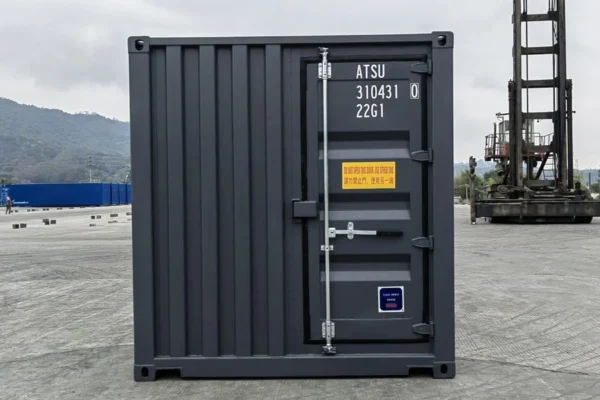

| Front Door | Single swing door – 46” width with extended handle for stand-alone front loading |
| Locking System | Welded lockboxes on both access points – padlock compatible, anti-pry reinforcement |
This layout allows for compartmentalized access without needing to unload the entire unit. Ideal for storage workflows, multi-zone conversions, and secured separation of inventory types.
Dimensions & Load Capacity
| Attribute | Measurement |
|---|---|
| External Dimensions | 20’ L × 8’ W × 8’6” H |
| Internal Dimensions | 19’6” L × 7’8” W × 7’10” H |
| Door Opening (Rear) | 7’8” W × 7’5” H |
| Door Opening (Front) | 46” W |
| Tare Weight | 5,070 lbs |
| Max Payload Capacity | 62,130 lbs |
| Gross Weight Rating | 67,200 lbs |
Functional Engineering Features
- Dual-ended access supports efficient load separation and quick retrieval
- 8-vent passive system promotes internal air exchange and moisture control
- Marine plywood flooring resists load deformation and high-impact wear
- Welded roof ladder allows for inspections, add-on roof frames, or conversions
- Forklift pocket integration ensures lateral maneuverability in yards or tight access zones
Suitable Applications
Construction & Infrastructure Projects
Supports material zoning, tool segregation, and fast-access deployment at high-traffic job sites.
Warehousing & Operational Logistics
Multi-door layout improves inventory flow, reduces handling time, and increases storage efficiency.
Mobile Conversions & Kiosk Builds
Pre-engineered for adaptation into workshops, offices, service counters, or modular event spaces.
Equipment & Vehicle Storage
Wide front and rear access enables roll-in/roll-out loading for compact utility vehicles, mowers, or heavy gear.
Condition Overview
This container is sold in new, one-trip condition, having completed only a single cargo trip from the manufacturing site to port. All access doors, gaskets, vents, and lockboxes have been quality-checked for full functionality.

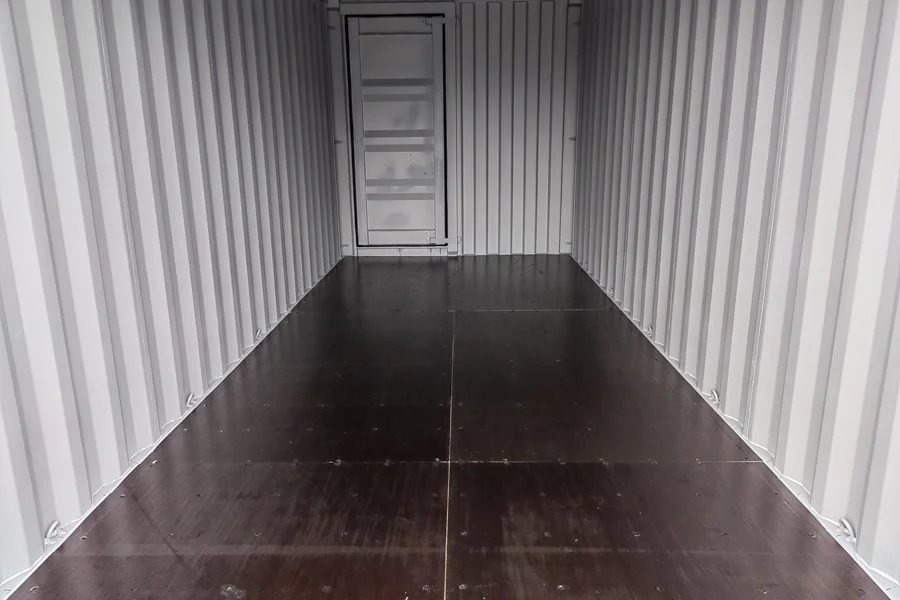

- Interior: Clean, dry, and ready for use
- Exterior: Structurally sound with intact coating and hardware
- Security: Lockboxes welded in-place and verified
