20FT High Cube Hard Open Top Container – Steel Floor
Categories: 20ft Shipping Containers, Open Top Shipping Containers
Description

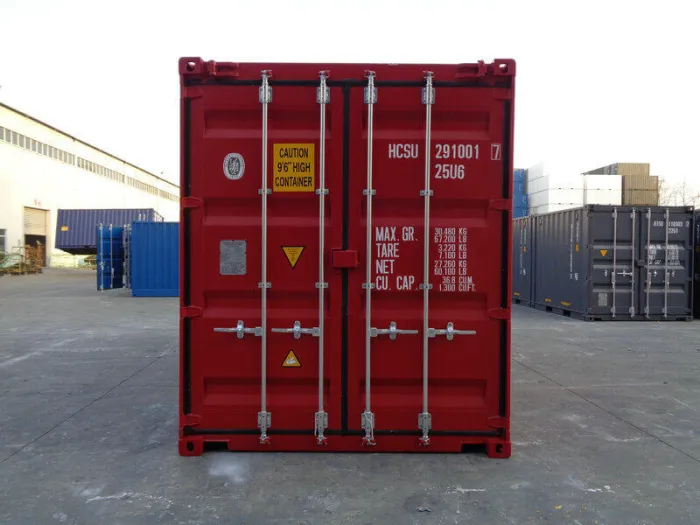

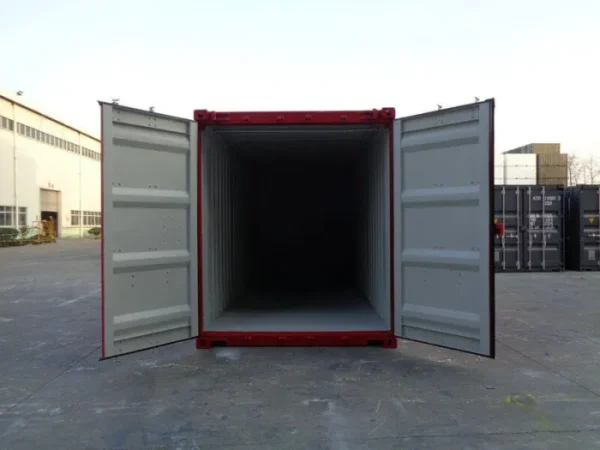

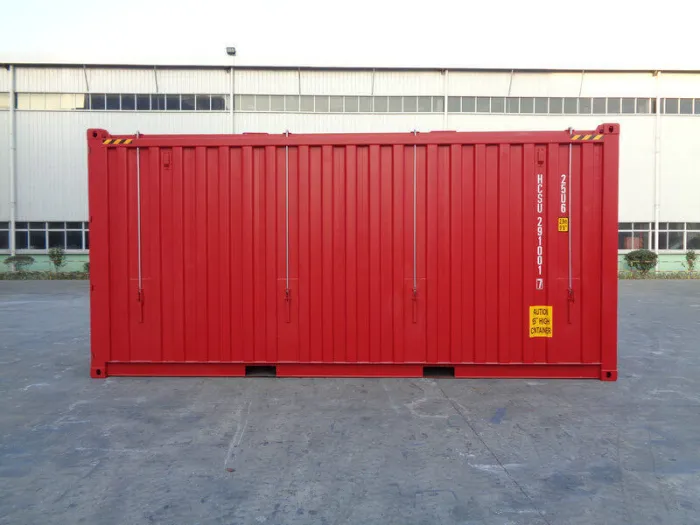

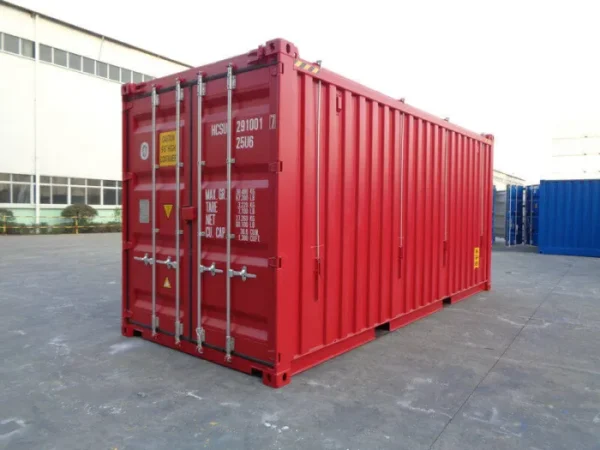

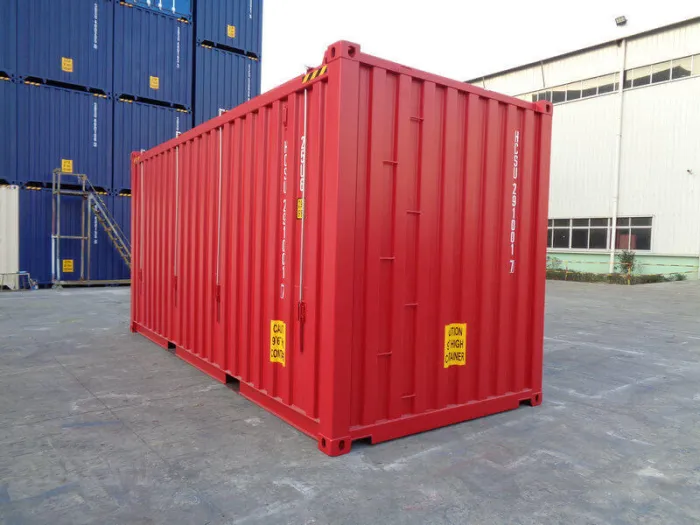

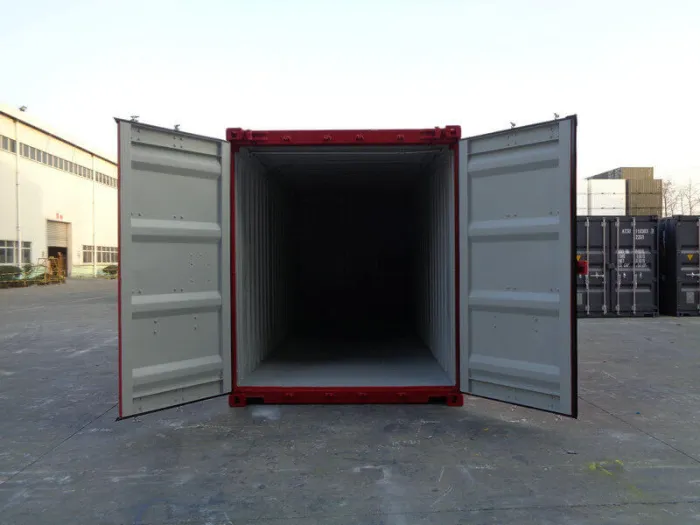

20FT High Cube Hard Open Top Container – Steel Floor
For Oversized Loads. Liquid Containment. Modification-Ready.
The 20FT High Cube Hard Open Top Container is engineered for maximum load flexibility, liquid containment, and industrial-grade modification capability. With a welded steel checker plate floor, removable steel roof, and increased vertical clearance, this unit provides a versatile solution for cargo that exceeds the limitations of standard containers.
Ideal for top-loaded goods, crane or hoist access, and static or mobile installations where structural integrity and spill protection are non-negotiable.
Specifications & Build Features
| Feature | Specification |
|---|---|
| Container Type | 20FT High Cube Hard Open Top |
| Material | CORTEN anti-corrosive steel |
| Flooring | 5/7 mm welded checker plate steel |
| Roof | Steel removable roof with full access |
| Header Beam | Detachable for tall cargo clearance |
| Ventilation | Standard passive air vents |
| Security | Integrated lockbox for padlock use |
| Certification | ISO & CSC certified |
| Finish | RAL 3002 (custom colors by request) |
| Stackable | Yes – intermodal compliant |
Dimensions & Capacity
| Specification | Measurement |
|---|---|
| External Dimensions (L×W×H) | 6.058 m × 2.438 m × 2.896 m |
| Internal Dimensions (L×W×H) | 5.898 m × 2.332 m × 2.677 m |
| Door Opening (W×H) | 2.338 m × 2.567 m |
| Roof Opening (L×W) | 5.570 m × 2.210 m |
| Internal Volume | 36.80 m³ |
| Tare Weight | 3,220 kg |
| Max Payload Capacity | 27,260 kg |
| Gross Weight Rating | 30,480 kg |
Structural & Functional Highlights

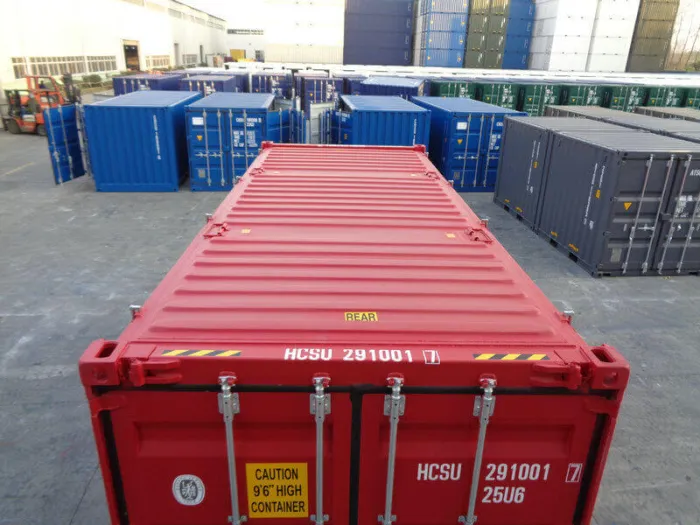

- Removable Steel Roof
Allows full overhead crane access for top-loaded cargo or vertical lift-in equipment. - Welded Steel Checker Plate Floor
5/7 mm thick, liquid-tight surface capable of withstanding direct load pressure and containing fluid spills. - High Cube Design
Provides additional vertical clearance for machinery, pallets, or built-in modifications not feasible in standard-height units. - ISO Corner Castings & CSC Certification
Enables global intermodal transport, crane handling, and secure stacking without modification. - Detachable Door Header Beam
Expands rear entry space to accommodate tall or irregularly shaped items.
Industrial Use Cases
Oil & Chemical Transport
Leak-resistant steel flooring makes this container ideal for storing or transporting IBCs, drums, and containers holding oil, lubricants, or corrosive chemicals.
Equipment Loading & Crane Access
Facilitates top-loaded placement of generators, engines, hydraulic units, and heavy industrial machinery using overhead cranes or forklifts with extended reach.
On-Site Workstations & Mobile Shops
Steel flooring allows direct welding, anchoring, and structural adaptation without reinforcement — making it perfect for mobile mechanical bays or custom workshop builds.
Export Logistics & Oversized Freight
Meets all ISO and CSC requirements for global shipping. Suitable for specialized cargo requiring open-top loading and high structural tolerance.
Fabrication, Branding & Architecture
Common base for converted container installations, open-top architectural displays, demo booths, or pop-up retail spaces.
Summary
The 20FT High Cube Hard Open Top Container with Steel Floor is a rugged, purpose-built solution for professionals who require access flexibility, fluid containment, and certified strength in one containerized unit. Whether for oilfield use, crane-loaded freight, or structural modifications, this container is built to perform under demanding conditions — without compromise.
Available for immediate deployment. Delivery and color customization options available upon request.
